📌 Purpose & Quick Summary

The Reseller Dashboard (index.php?page=dashboard) serves as the administrative command cockpit for web hosting resellers. Operating on dedicated Port 2085, it provides real-time visibility into your entire client ecosystem. From this central dashboard, you can track sub-account allocations, monitor disk space and bandwidth quotas across all tenant accounts, inspect recent deployment activities, and launch 1-click management shortcuts.

BoostonCP Reseller Panel Dashboard Overview

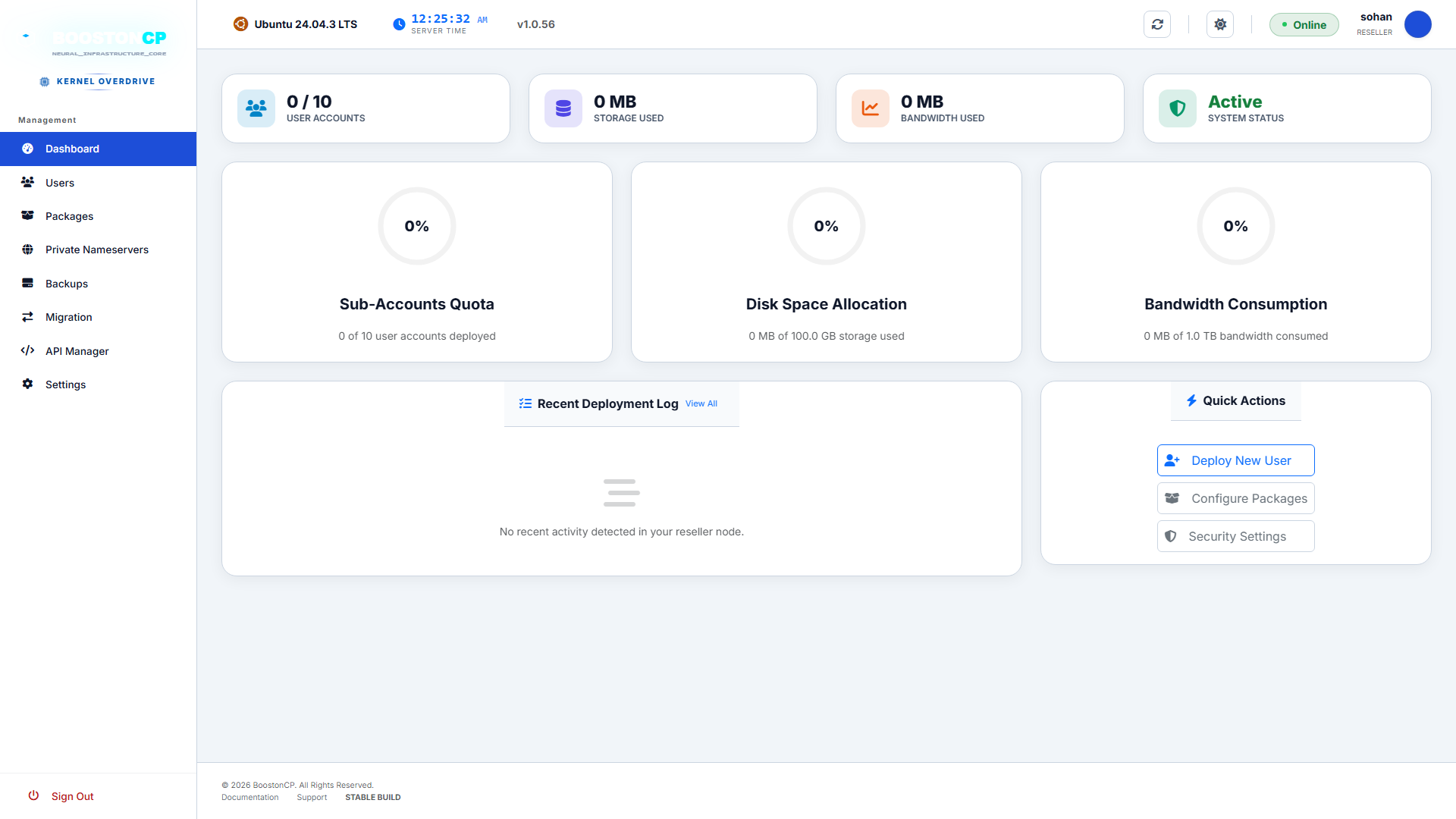

Figure 1: BoostonCP Reseller Command Dashboard showing quota utilization gauges, system health, and quick actions.

🖥️ Interface Tour & Elements

  1. Top Header Telemetry Bar:
    • OS & Node Environment: Displays the underlying Linux distribution (e.g. Ubuntu 24.04.3 LTS) and server version (v1.0.56).
    • Real-Time Clock: Live server time synchronization.
    • System Status Badge: Real-time heartbeat indicator (Online) verifying active communication with background daemons.
    • Reseller Identity Badge: Displays active reseller username and user role (sohan - RESELLER).
    • Settings & Theme Controls: Quick gear icon routing to branding configuration, and theme refresh toggle.
  2. Top Metric Cards:
    • User Accounts Counter: Displays active client accounts vs. maximum allowance (e.g. 0 / 10).
    • Storage Used Counter: Aggregate disk space consumed across all client directories and database tables.
    • Bandwidth Used Counter: Monthly cumulative egress transfer consumed across all client websites.
    • System Status: Security state and node availability badge (Active).
  3. Circular Resource Allocation Gauges:
    • Sub-Accounts Quota Gauge: Percentage of provisioned customer accounts against your reseller package limit.
    • Disk Space Allocation Gauge: Percentage and exact gigabytes of storage utilized out of your total quota (e.g. 0 MB of 100.0 GB).
    • Bandwidth Consumption Gauge: Real-time progress bar of monthly network traffic (e.g. 0 MB of 1.0 TB).
  4. Recent Deployment Log: Live stream tracking new account creations, package modifications, and client node status changes.
  5. Quick Action Panel: High-speed navigation shortcuts:
    • Deploy New User: Immediate access to the client account provisioning wizard.
    • Configure Packages: Direct link to the hosting package builder.
    • Security Settings: Direct routing to nameserver and firewall options.

🛠️ Step-by-Step Instructions

Step 1: Accessing the Reseller Control Panel

  1. Open your web browser and navigate to https://server.boostonserver.com:2085/ (or your whitelabeled reseller hostname on Port 2085).
  2. Enter your Reseller ID and Password, then click Uplink Node.
  3. (Alternative for Administrators): In the Admin Panel (Port 2087) on the Reseller Management page, click the Login to Reseller Panel button next to any reseller identity to authenticate via an encrypted bridge token.

Step 2: Monitoring Quota Ceilings

  1. Check the Sub-Accounts Quota gauge. If your account count reaches 100%, new client account deployments will be blocked until older accounts are removed or your package is upgraded.
  2. Monitor the Disk Space Allocation bar. This tracks the combined usage of all client files, mailboxes, and MySQL databases.
  3. Review the Bandwidth Consumption gauge near the end of your billing cycle to avoid network throttling.

Step 3: Launching Client Management

  1. Click Deploy New User in the Quick Actions box to immediately provision your first client website.
  2. Click Configure Packages to review or modify the resource boundaries assigned to your hosting plans.

⚙️ Complete Field & Parameter Reference Table

Telemetry Element Displayed Metric Operational Description & Thresholds
User Accounts Current / Limit Total number of client tenants allowed under this reseller subscription.
Storage Used MB / GB / TB Real-time disk consumption aggregated via Linux filesystem quotas.
Bandwidth Used MB / GB / TB Monthly cumulative transfer reset automatically on the 1st of each month.
System Status Active / Suspended Confirms parent reseller status. If suspended by admin, all client nodes pause.
Quick Actions Action buttons Instant modal/page routing bypassing deep navigation menus.

❓ Troubleshooting & Common Errors

1. Dashboard Displays "Connection Error / Session Expired"

  • Cause: Browser inactivity timeout or desynchronized bridge token.
  • Solution: Refresh the browser page using Ctrl + F5. If required, re-login using your reseller credentials on Port 2085.

2. Quota Gauges Show Discrepancy with Client Disk Usage

  • Cause: Linux filesystem quotas cache space in memory and sync periodically.
  • Solution: Click the Reload button in the upper-right header to force an immediate kernel quota resynchronization.
