Admin Console (Port 2087) Backups > Incremental Backups Tab 1: Storage

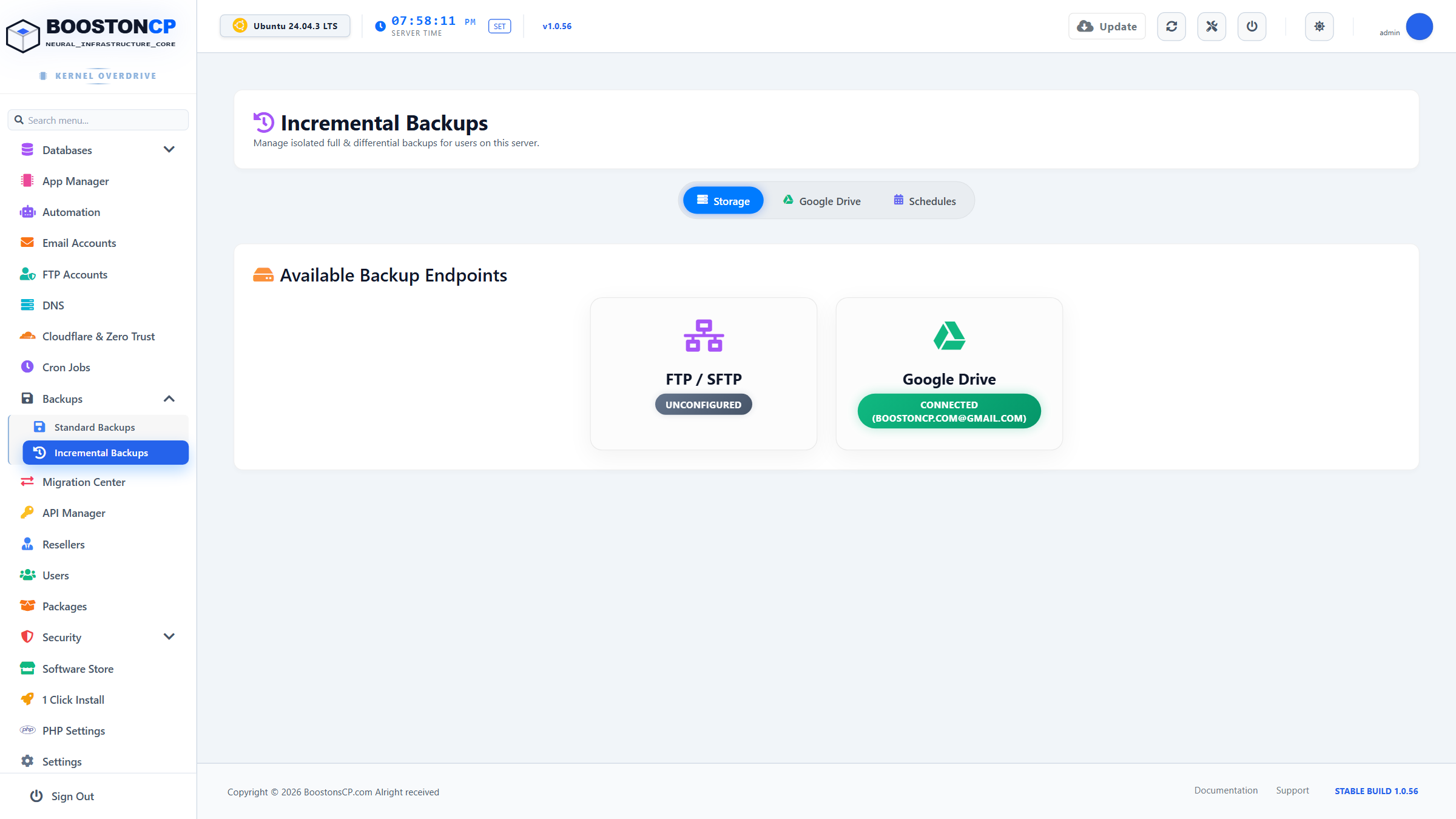

BoostonCP Incremental Backup Storage Tab

Incremental Backups • Tab 1: Storage • Native 1920x1080 View

📌 Purpose & Quick Summary

Use the Storage tab to link off-site storage targets (FTP/SFTP servers and Google Drive) for incremental backups. Unlike standard full tarballs, incremental backups only transmit modified byte blocks and deduplicate identical data, saving up to 90% in bandwidth and cloud storage space.

🖥️ Interface Tour & Elements

  1. Available Backup Endpoints: Two primary cards representing off-site storage providers:
    • FTP / SFTP Card: Displays real-time connection status (Configured or Not Configured).
    • Google Drive Card: Displays cloud authorization status (Connected with connected Gmail address, or Checking...).
  2. Interactive Modal Trigger: Clicking either card opens its connection credentials modal.

🛠️ Step-by-Step Instructions: Linking Storage Endpoints

  1. Open Backups > Incremental Backups and select the Storage tab.
  2. Connecting FTP/SFTP:
    • Click the FTP / SFTP card.
    • Enter your remote storage hostname, port (21 or 22), username, password, and target folder path.
    • Click Save Connection.
  3. Connecting Google Drive:
    • Click the Google Drive card.
    • Follow the OAuth2 prompt to authorize your Google account.
    • The status pill will turn green showing Connected ([email protected]).
